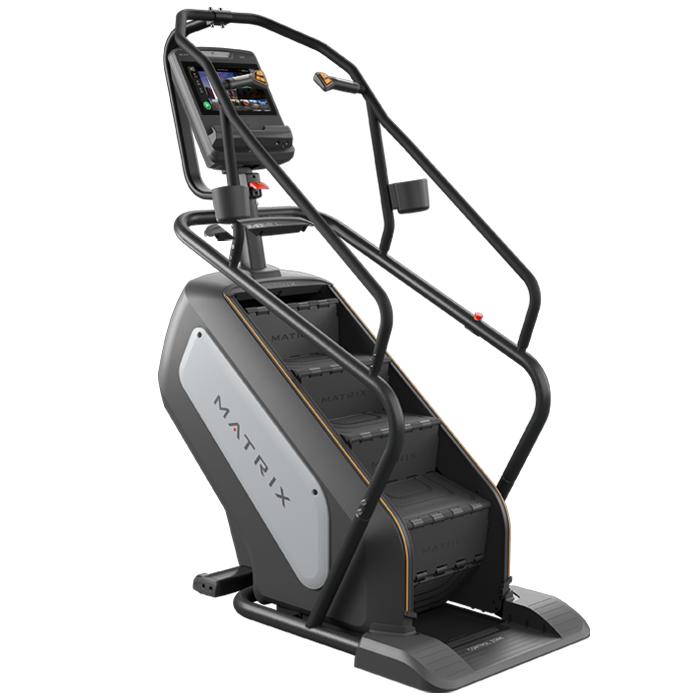

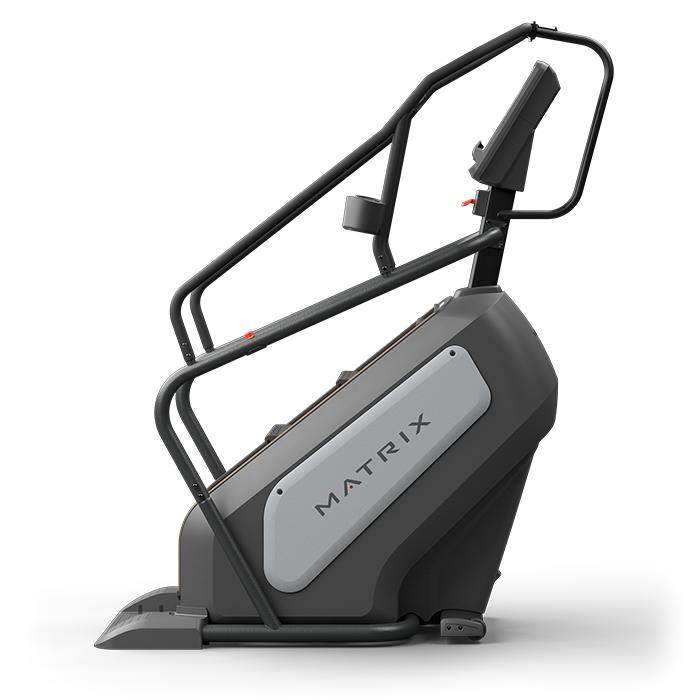

The Matrix Performance ClimbMill with the Touch Console is a top-tier, heavy-duty stair climber designed for high-traffic commercial environments. It is celebrated for its industry-leading safety features and a “clean-drive” design that prevents sweat and debris from reaching the internal motor. This machine provides an intense lower-body workout and is a staple in premium fitness clubs worldwide.

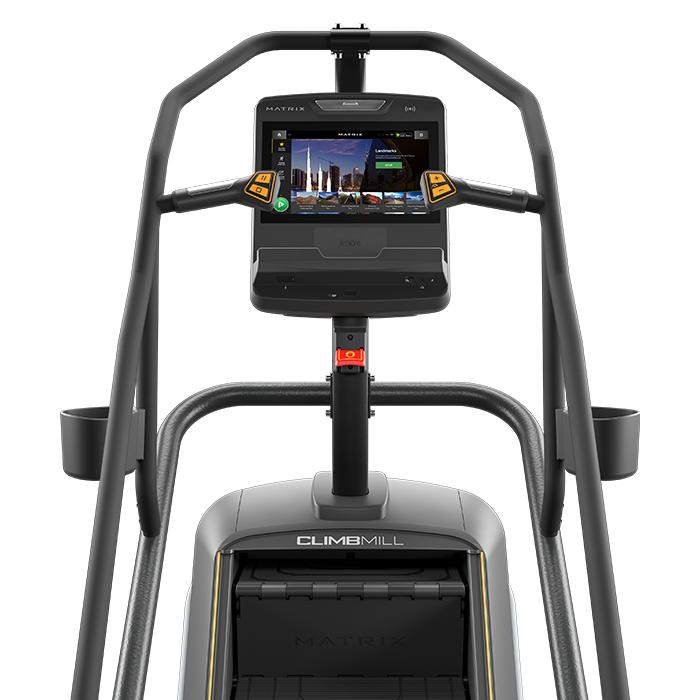

The Touch Console (16-inch HD touchscreen) turns a difficult climb into an engaging experience. It features Virtual Active™ technology, allowing users to virtually climb the Great Wall of China or the Pyramids of Giza, with the machine’s speed automatically syncing to the footage. It also includes the exclusive Landmarks program, which challenges users to scale the height of the world’s most famous skyscrapers.
Technical Specifications
-
Type: Professional motor-driven commercial stair climber
-
Console: Touch Console (16-inch HD 1080p Touchscreen)
-
Step Dimensions: 10″ Deep, 22″ Wide, 8″ Height (25.4 cm × 55.9 cm × 20.3 cm)
-
Step-up Height: 10.5″ (26.7 cm)
-
Speed Range: 24 – 162 steps per minute
-
Resistance Levels: 30
-
Drive System: Oil-free ECB (Eddy Current Brake) modular drive system with industrial-grade chain
-
Safety Features: Infrared “Stop” sensor at the base, mechanical emergency stop button on the console, and rear step-up platform for easy mounting
-
Design: Sweat-resistant, easy-to-clean shrouds with a modular design for rapid servicing
-
Handlebars: Ergo Form™ grips with integrated speed/resistance toggles and heart rate sensors
-
Entertainment: Native apps for Netflix, YouTube, Spotify, and Facebook; integrated web browser
-
Smart Tech: Wireless smartphone charging, Apple Watch® / Samsung Galaxy Watch® integration via NFC, and RFID login
-
Connectivity: Wi-Fi, Bluetooth®, ANT+, and Ethernet
-
Dimensions: 71.7″ × 40.2″ × 82.7″ (182 cm × 102 cm × 210 cm)
-
Weight: 414 lbs (188 kg)
-
Max User Weight: 400 lbs (182 kg)
-
Power Requirement: 100–240V (Dedicated circuit recommended)
